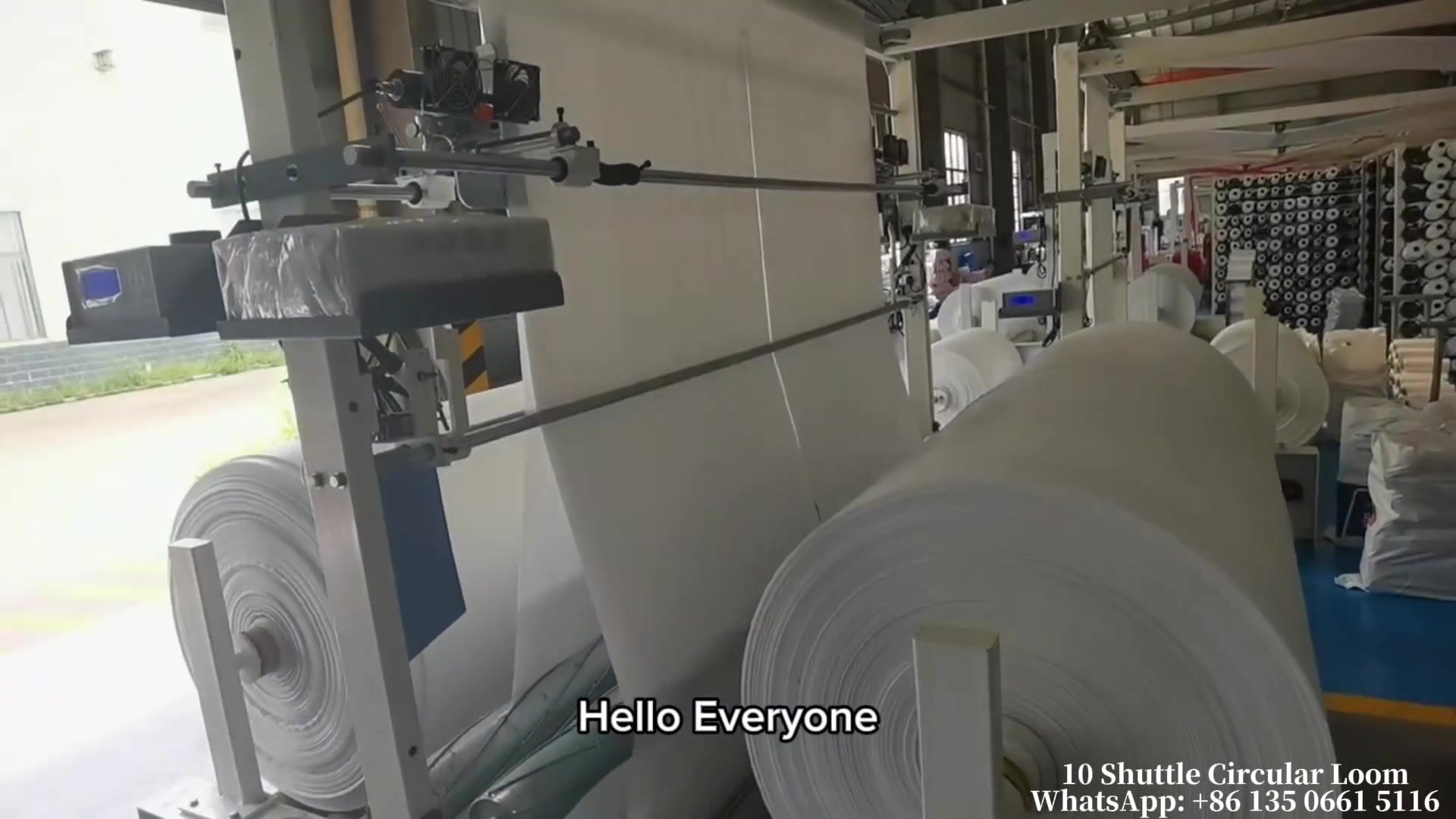

Ten Shuttle Circular Loom
Greatly improve production efficiency
Classification:
Circular Loom
Ten Shuttle Circular Loom
Keyword: Ten Shuttle Circular Loom
Key words:
Classification:
Circular Loom
Ten Shuttle Circular Loom
keyword： Ten Shuttle Circular Loom
Whatsapp:
Details
Packaging machine: an important part of automated production
Packaging machines play a crucial role in modern industrial production lines. With the rapid development of technology, automation and intelligence have become the mainstream trends in industrial manufacturing, and packaging machines, as key equipment on production lines, are an indispensable part. Below, we will delve into the role, characteristics, and industrial applications of packaging machines.
1、 The function of packaging machine
Packaging machines are mainly used for automated operations in the product packaging process, including sealing, labeling, packaging, and other multiple stages. It can not only improve production efficiency, but also reduce labor costs, minimize errors, and enhance product quality.
2、 Characteristics of packaging machine
1. Efficiency: The packaging machine can achieve high-speed and continuous automated packaging, greatly improving production efficiency.
2. Stability: Ensure packaging quality and accuracy through precise control systems and stable mechanical structures.
3. Flexibility: Packaging methods and parameters can be adjusted according to different products to meet various packaging needs.
4. Cost savings: Reduce labor costs, minimize waste, and lower business operating costs.
3、 The application of packaging machines in the industrial field
1. Food industry: used for sealing, labeling, etc. of food packaging bags.
2. Pharmaceutical industry: used for packaging products such as drugs and medical devices.
3. Chemical industry: used for automatic filling, sealing, etc. of chemical products.
4. Daily necessities industry: used for automated packaging of daily necessities such as shampoo and shower gel.
5. Other industrial fields, such as electronic products, toys, hardware, etc., require packaging machines to complete the product packaging work.
4、 Development Trends
With the rapid development of Industry 4.0 and intelligent manufacturing, packaging machines are moving towards greater automation and intelligence. In the future, packaging machines will pay more attention to collaborative operation with other equipment on the production line, achieving comprehensive automation and intelligence of the production process.
In short, packaging machines play an indispensable role in modern industrial production lines. Its function is not only to improve production efficiency, but also to ensure product quality and reduce operating costs. With the advancement of technology, we have reason to believe that packaging machines will play a greater role in the future, creating more value for the industrial manufacturing field.
Application
This series plastic circular loom is specially designed for the high quality wide tubular or flat fabric by PP and HDPE for jumbo bag, geotextile, tarpaulin and so on.
Technical Data
| S/N. | Item | Parameters | Note |
| 1) | Equipment type | YX-FYB2600/10 | Flat cam |
| 2) | Revolving speed | 65 r/min | 65 r/min |
| 3) | Drive motor power | 5.5kw | 5.5kw |
| 4) | Boat shuttle number | 10 | Adopt aluminum shuttle body, small mass, reduce energy consumption, running stable. |
| 5) | Track width | 130mm | Adopt the hard chromium plating process for the track slot. |
| 6) | Production width | 2100mm-2550mm | 2100mm-2550mm |
| 7) | Weft yarn density | 8-16 pcs / inch | Independent lifting system |
| 8) | Weft Insertion Speed | 650ppm | 650ppm |
| 9) | Lifting motor power | 0.75KW | 0.75KW |
| 10) | Production speed | 1300-1400m/day | It depend on the final width of yarn |
| 11) | Warp yarn number | max 3456 pcs | Woven high density, high fiber container bag, geotextile, tarpaulin, etc |
| 12) | Warp yarn diameter | Max. 140mm | Max. 140mm |
| 13) | Weft yarn diameter | 110mm | 110mm |
| 14) | Winders Motor | 0.75KW | 0.75KW |
| 15) | Warp beam let-off device | Initiative warp yarn let-off | Frequency control; automatic stop after weft completion. |
| 16) | Warp yarn broken control | Automatic stop for warp breaking | |
| 17) | Weft yarn broken control | Automatic stop after weft breaking and weft completion | Bluetooth weft yarn detector, sensitive and reliable, free from dust and light line impact, safe and reliable, automatic stop after weft breaking. |
| 18) | Double section uncoiling and Double winding | Winding width 2600mm | Frequency control, winding motor0.7KW |
| 19) | Winding diameter | max 1200mm | |
| 20) | Counting clock | Photoelectric counting meter clock | |
| 21) | Machine size | About （L）18.5M*(W)4*(H)4.5M | |
| 22) | Equipment weight | About 7 Tons | |
Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Inquiry Process
The client informs about the product specifications and weight.
We suggests machine types and offer the official offer.
After the client confirms the order details, we begins the production.
During production, we provides photos and videos, allowing the client to track and supervise the production progress in real time.
24 Hours Online Service
Installation and Debugging
The machines are loaded and shipped out.
Quality inspection is carried out.
