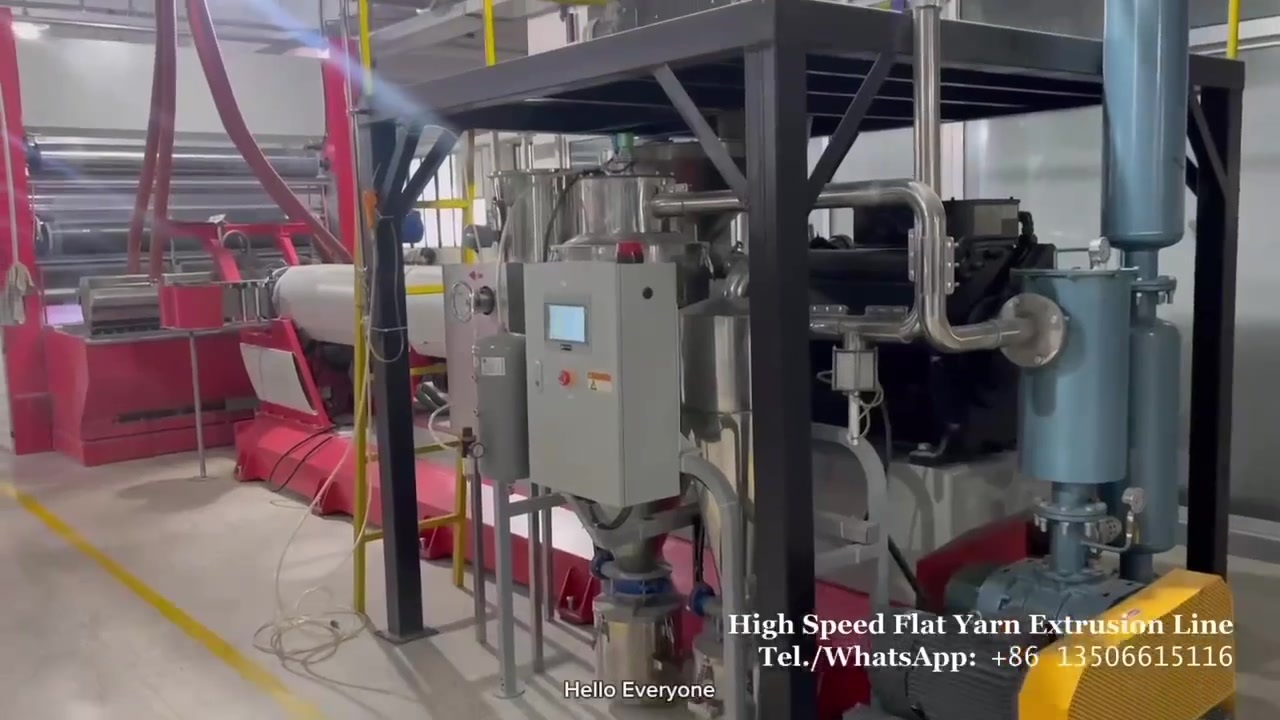

Flat Yarn Extrusion Line
Greatly improve production efficiency
Keyword：High Speed Flat Yarn Making Machine
Key words:
Classification:
Flat Yarn Making Machine
Flat Yarn Extrusion Line
keyword： Flat Yarn Extrusion Line
E-mail:
Details
Packaging machine: an important part of automated production
Packaging machines play a crucial role in modern industrial production lines. With the rapid development of technology, automation and intelligence have become the mainstream trends in industrial manufacturing, and packaging machines, as key equipment on production lines, are an indispensable part. Below, we will delve into the role, characteristics, and industrial applications of packaging machines.
1、 The function of packaging machine
Packaging machines are mainly used for automated operations in the product packaging process, including sealing, labeling, packaging, and other multiple stages. It can not only improve production efficiency, but also reduce labor costs, minimize errors, and enhance product quality.
2、 Characteristics of packaging machine
1. Efficiency: The packaging machine can achieve high-speed and continuous automated packaging, greatly improving production efficiency.
2. Stability: Ensure packaging quality and accuracy through precise control systems and stable mechanical structures.
3. Flexibility: Packaging methods and parameters can be adjusted according to different products to meet various packaging needs.
4. Cost savings: Reduce labor costs, minimize waste, and lower business operating costs.
3、 The application of packaging machines in the industrial field
1. Food industry: used for sealing, labeling, etc. of food packaging bags.
2. Pharmaceutical industry: used for packaging products such as drugs and medical devices.
3. Chemical industry: used for automatic filling, sealing, etc. of chemical products.
4. Daily necessities industry: used for automated packaging of daily necessities such as shampoo and shower gel.
5. Other industrial fields, such as electronic products, toys, hardware, etc., require packaging machines to complete the product packaging work.
4、 Development Trends
With the rapid development of Industry 4.0 and intelligent manufacturing, packaging machines are moving towards greater automation and intelligence. In the future, packaging machines will pay more attention to collaborative operation with other equipment on the production line, achieving comprehensive automation and intelligence of the production process.
In short, packaging machines play an indispensable role in modern industrial production lines. Its function is not only to improve production efficiency, but also to ensure product quality and reduce operating costs. With the advancement of technology, we have reason to believe that packaging machines will play a greater role in the future, creating more value for the industrial manufacturing field.
Application
To produce PP/HDPE tape for woven bag, cement bag, mesh bag, sunshade net, tarpaulin, jumbo bag, geotextile, carpet backing, artificial grass, etc.
Technical Data
| Type | YX-PLG1200 | YX-PLG1500 | YX-PLG1800 | YX-PLG2000 |
| Max.output of Extruder(kg/h) | 400 | 500 | 650 | 750 |
| Screw diameter(mm) | 105 | 120 | 120 | 130 |
| Screw L/D Ratio | 31:1 | 31:1 | 31:1 | 31:1 |
| Screw Rotational Speed(r/min) | 20-132 | 20-132 | 20-132 | 20-132 |
| Die Length(mm) | 1200 | 1500 | 1800 | 2000 |
| Plastic tape fiber Density(Tex) | 60-200 | 60-200 | 60-200 | 60-200 |
| Max Line Speed(m/min) | 450 | 450 | 450 | 450 |
| Winders number (Spindles) | 216 | 312 | 360 | 408 |
| Installation Dimension(LxWxH)（mm） | 40000x3800x3200 | 48000x4300x3200 | 49000x4300x3200 | 51500x4700x3200 |
Composition Of The Standard Loom
|
Standard items |
Optional items |
|
01) Granula automatic loader |
01) Static mixer |
|
02) Extruder |
02) Multiple component dosing unit |
|
03) Automatic screen changing filer |
03) Direct drive motor for extruder |
|
04) Melt pump system |
04) Equipment for processing HDPE |
|
05) Standard T-die |
05) Second T-die |
|
06) Water quenching tank |
06) T-die for special tape |
|
07) Film haul-off unit |
07) Automatic adjust T-die |
|
08) Water removal system |
08) Film thickness detecting and control system |
|
09) Tape slitting unit |
09) Tape folding unit |
|
10) Film holding unit |
10) Tape fibrillator |
|
11) Edge trim recycling system |
11) Additional traction godets unit |
|
12) Standard hot air oven (length 6m) |
12) Extended hot air oven |
|
13) Standard stretching section with 6 godets including heating unit |
13) Electrostatic eliminator |
|
14) Protective cover for stretching section |
14) Additional stretching godets |
|
15) Tape vacuunm extraction system including collection box |
15) Additional oil heating annealing godets |
|
16) Inverter winder |
16) Annealing hot air oven |
|
17) Electrical and control system |
17) Additional chilling godets |
|
|
18) Winder monitoring system |
|
|
19) Water chiller |
|
|
20) Cooling water tower |
|
|
21) Air compressor station |
Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Inquiry Process
The client informs about the product specifications and weight.
We suggests machine types and offer the official offer.
After the client confirms the order details, we begins the production.
During production, we provides photos and videos, allowing the client to track and supervise the production progress in real time.
24 Hours Online Service
Installation and Debugging
The machines are loaded and shipped out.
Quality inspection is carried out.
