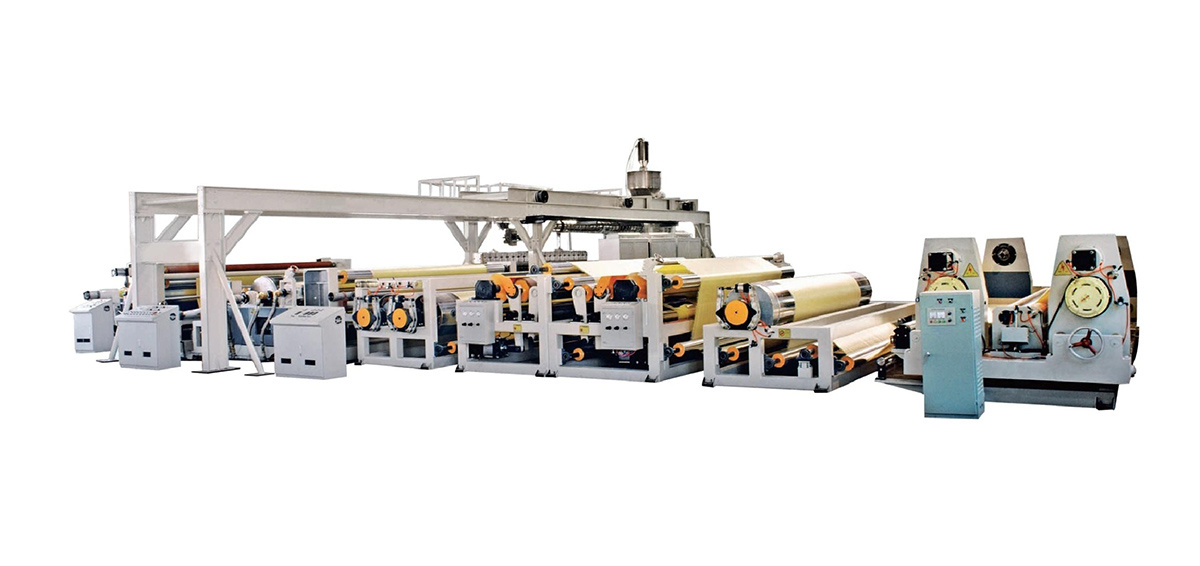

Lamination Machine
Greatly improve production efficiency
Keyword：High Speed Plastic Extrusion Coating Machine
Key words:
Classification:
Extrusion Coating Line
Lamination Machine
keyword： Lamination Machine
E-mail:
Details
Packaging machine: an important part of automated production
Packaging machines play a crucial role in modern industrial production lines. With the rapid development of technology, automation and intelligence have become the mainstream trends in industrial manufacturing, and packaging machines, as key equipment on production lines, are an indispensable part. Below, we will delve into the role, characteristics, and industrial applications of packaging machines.
1、 The function of packaging machine
Packaging machines are mainly used for automated operations in the product packaging process, including sealing, labeling, packaging, and other multiple stages. It can not only improve production efficiency, but also reduce labor costs, minimize errors, and enhance product quality.
2、 Characteristics of packaging machine
1. Efficiency: The packaging machine can achieve high-speed and continuous automated packaging, greatly improving production efficiency.
2. Stability: Ensure packaging quality and accuracy through precise control systems and stable mechanical structures.
3. Flexibility: Packaging methods and parameters can be adjusted according to different products to meet various packaging needs.
4. Cost savings: Reduce labor costs, minimize waste, and lower business operating costs.
3、 The application of packaging machines in the industrial field
1. Food industry: used for sealing, labeling, etc. of food packaging bags.
2. Pharmaceutical industry: used for packaging products such as drugs and medical devices.
3. Chemical industry: used for automatic filling, sealing, etc. of chemical products.
4. Daily necessities industry: used for automated packaging of daily necessities such as shampoo and shower gel.
5. Other industrial fields, such as electronic products, toys, hardware, etc., require packaging machines to complete the product packaging work.
4、 Development Trends
With the rapid development of Industry 4.0 and intelligent manufacturing, packaging machines are moving towards greater automation and intelligence. In the future, packaging machines will pay more attention to collaborative operation with other equipment on the production line, achieving comprehensive automation and intelligence of the production process.
In short, packaging machines play an indispensable role in modern industrial production lines. Its function is not only to improve production efficiency, but also to ensure product quality and reduce operating costs. With the advancement of technology, we have reason to believe that packaging machines will play a greater role in the future, creating more value for the industrial manufacturing field.
Application
Bags for chemical, fertilize, cement, rice, sugar, aquatic products, pet food; Paper laminating.
Application
Double extruder and double lamination machine can laminate the both side of film in one production process.
Auto registration for higher accurate color match on both sides. Higher speed, easier operation, less worker.
Technical Data
|
S/N. |
Items |
Parameters |
|
1) |
Laminating Width |
200-800mm |
|
2) |
Laminating Thickness |
0.008-0.030mm |
|
3) |
Laminating Line Speed |
235m/min |
|
4) |
screw diameter |
Φ95mm |
|
5) |
Screw length |
2800mm |
|
6) |
screw speed |
100r/min |
|
7) |
Maximum extrusion volume |
150kg/h×2 |
|
8) |
Roller Effective Length |
900mm |
|
9) |
Die Head Width |
1050mm |
|
10) |
Max Dia.Of Unwinder |
1400mm |
|
11) |
Unwinding automatic deviation correction stroke |
±100mm |
|
12) |
Total power |
120kw |
|
13) |
Power supply |
380v/220v 50hz ，customized |
|
14) |
Air flow (m3/min) |
0.6 m3/min |
|
15) |
Total water supply |
0.5（0.25-0.4 MPA） |
|
16) |
Size |
17.5×7.5×2.8H M |
|
17) |
Total Weight |
About 30T |
|
18) |
Suitable material |
Fabric basis：50-120g/m2 |
|
19) |
Machine color |
Standard color |
|
20) |
Machine type |
Left and right models (left mobile phone: on the operating surface facing the extruder, the left hand side is for placing cloth, the opposite is the right mobile phone) |
Composition of the Machine
|
Standard items |
|
01) Granule automatic loader |
|
02) Extruder |
|
03) Filer with hydraulic screen changer |
|
04) Standard T-die |
|
05) Double-station unwinding unit for main material |
|
06) Semi-auto. roll changing for unwinding |
|
07) Unwinding unit for second material |
|
08) BOPP film manual registration system |
|
09) Laminating unit |
|
10) Tracing edge trimming device |
|
11) Edge trim collection system |
|
12) Electronic meter counter |
|
13) Back to back friction surface rewinding unit |
|
14) Automatic roll changing device for rewinding |
|
15) Electrical and control system |
Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Inquiry Process
The client informs about the product specifications and weight.
We suggests machine types and offer the official offer.
After the client confirms the order details, we begins the production.
During production, we provides photos and videos, allowing the client to track and supervise the production progress in real time.
24 Hours Online Service
Installation and Debugging
The machines are loaded and shipped out.
Quality inspection is carried out.
