Woven Bag High-Speed Production Solutions

Woven Bag production line

Drying Mixer

The mixer can mix the material completely. The capacity is 100 kg /h to full the tank. The power motor is the gear reduction motor 11 kw. The dimension is 630 mm x 520 mm x 1150 mm.

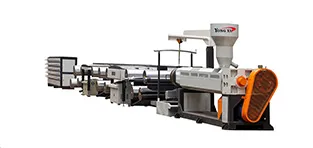

Flat yarn extrusion Line

This equipment is design for producing pp flat yarn. It’s maximum pp melting output upto 100 kg/hr, equipped with belt type screen filter changer and rotary blades slitting system, these components can save the down time for changing the iron filter and tape slitting blades, and also decrease the loss during the production. The pressure rollers of take off unit is controlled by pneumatic system, and synchronized control electronic control box to control full set machine. Our electronic tension control winder provides good wind-up flat surface quality, tape strength and even winding edge.

Suspension Six Shuttle Circular Loom

This is the most energy efficient circular loom, the power condition is only 3.0KW per hour, the smallest diameter of folded 300mm, the maximum speed 160 rev / min. Applicable to all types of small bags, rice bags, flour bags, cement bags, fertilizer bags etc.

Four Shuttle Circular Loom

The circular loom is doing tubular weaving; the speed up to 190 rpm/minute, its capacity can reach upto 92 m/hour auto stop system of warp & weft yarn braken/finished.

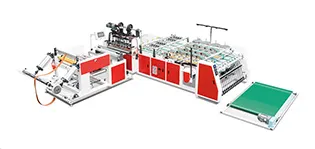

Automatic Cuttng Sewing Machine

Fully automatic conversion line with servo motor designed to produce bottom fold-sewn bags from tubular cloth roll which is not only dramatically reduces labor consumption, but also in high productivity while maintain stable quality. The line, including cutting, sewing, count stacking sections, with its unique design, employed marginal moving parts, which not only very easy to operate but also minimal maintenance required.

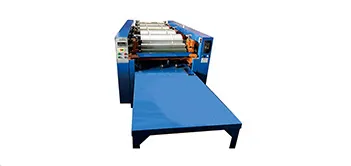

Normal Printing Machine

It is a piece-by-piece type printing machine, which bag feed by manuallythe printing drum is posible to change its position (left to right & up to down) and each color have got individual ink circulation pump. It is the conversional type printing machine and easy operation and maintanance.

Hydraulic Bag Baling Press

this machine design for packing the woven bag to the bale type Then put them to the storage, to the customer site, etc…

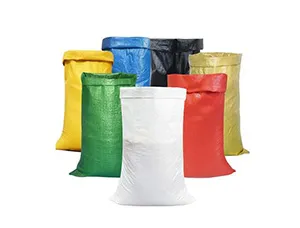

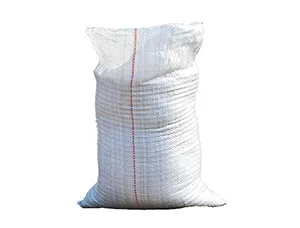

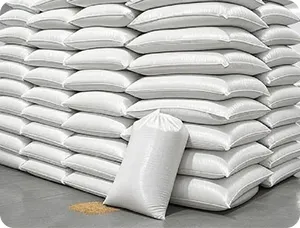

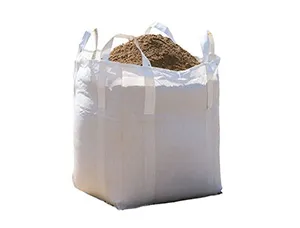

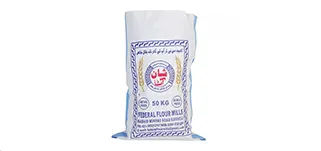

Woven Bag

PP woven bag is available to pack following item:
Agriculture products, including rice, sugar, flour, salt, bean, fruit, vegetable, fertilizer, etc.
Construction products: sand, powder, stone, etc.
Also for packing the chemical product, garbage as well.
