Suitable material |
Laminated PP/PE Tubular |
|
Speed |
110-140 pcs/min (The Final Speed Based on Bottom Width) |
|
Control System |

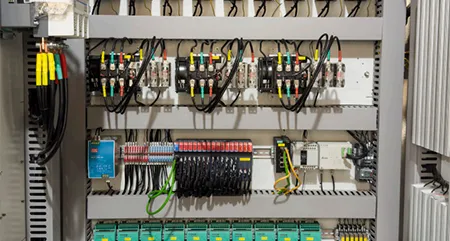

UK TRIO motion control system |
|
Welding Method |
High Temperature Gun Welding (Max. Temperature 750 ℃) |
| Model | YX-HZ140 |
| Suitable material | Laminated PP/PE Tubular |
| Speed | 110-140 pcs/min (The Final Speed Based on Bottom Width) |
| Control System | UK TRIO motion control system |
| Welding Method | High Temperature Gun Welding (Max. Temperature 750 ℃) |
| Needle rollers | Imported micro needle rollers and double sets of exhaust needle rollers |

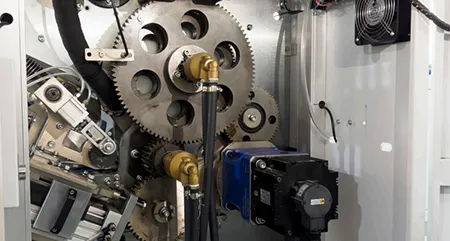

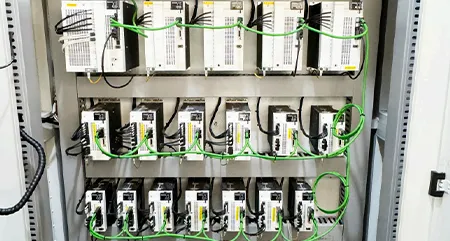

| Servo motor, Inverter | Panasonic |
| Color mark sensor | Panasonic |
| Reducer | ROUIST, German |
| Pneumatic parts | Japan SMC, Germany FESTO |
| Standard items | |

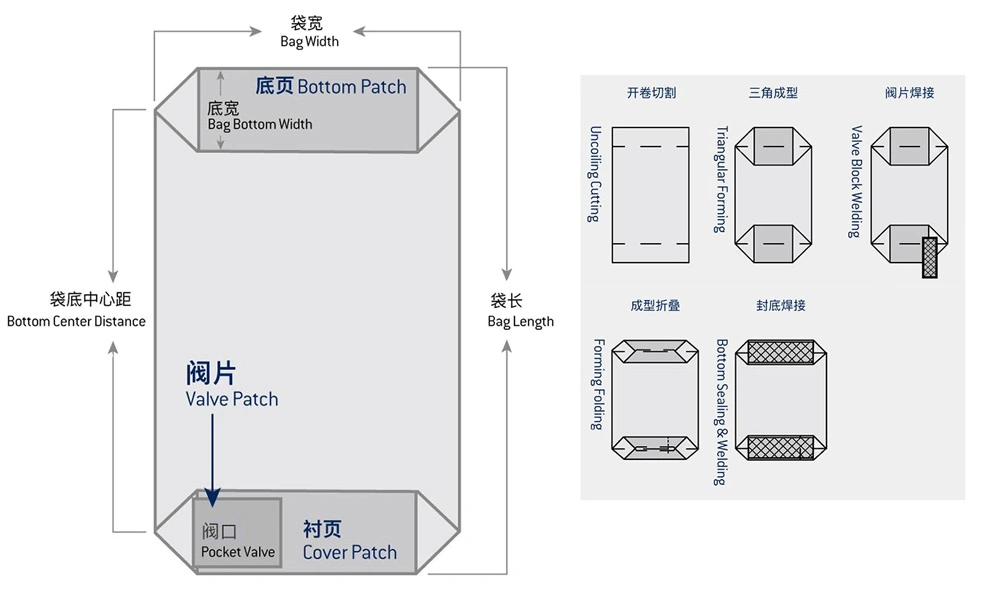

| 1) Main Unwinder | 8) Forming Rack |
| 2) Exhaust Machine | 9) Bottom Patch Device |
| 3) Cutting Machine | 10) Cover Patch Device |
| 4) Pulling Device | 11) Conveyor |

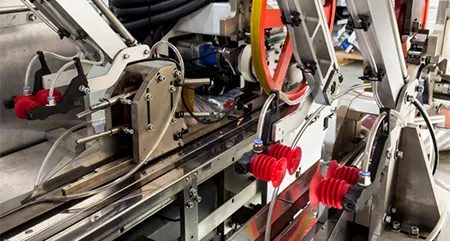

| 5) Bag Opening Device | 12) Cover & Bottom Patch Unwinder |

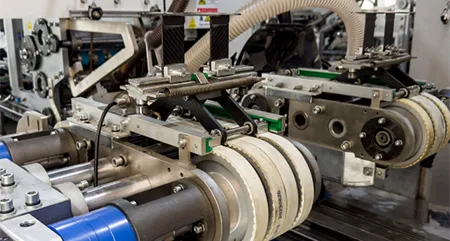

| 6) Triangular Forming Device | 13) Electric Cabinet |
| 7)Valve Patch Device | 14) Valve Patch Unwinder |
Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
