YX-PLG1200

High Speed Plastic Extrusion Tape Line | PP Flat Yarn Making Machine

Name: High Speed Plastic Extrusion Tape Line | PP Flat Yarn Making Machine
Brand: Yongxu
SKU: 00025
Rating: 4.9 (63 reviews)

Screw L/D Ratio	31:1
T-Die	Jingcheng t-die (TOP 1 OF CHINA BRAND)
Main motor	Germany Siemens
Drive motor control	France Schneider or Japan YASKAWA

Watch The Video

Bag size:

Width

Length

Printing

Yes

One side

color

Both sides

color

Capacity Requirement:

kg/hr

Primary Materials:

Submit Contact Us

Product Introduction

Yongxu's High Speed Plastic Extrusion Tape Line represents the cutting-edge technology in flat yarn making machine manufacturing. This advanced series is designed and developed on the basis of foreign advanced technology, incorporating computer control and monitoring to make operation easier and more stable. The key electrical components adopt international brands including Germany Siemens, France Schneider, and Japan YASKAWA. This pp flat yarn making machine is specifically designed to produce various specifications of PP or PE tapes with exceptional quality and efficiency. As a leading flat yarn extruder machine manufacturer, we understand the importance of high output and energy efficiency. Our tape Extrusion line integrates intelligent control systems with precision engineering to deliver superior tape quality while minimizing consumption and maximizing economic effectiveness. Whether you're producing woven bags, geotextiles, or other industrial applications, this Pp Flat Yarn Extrusion Machine offers the perfect solution for your production needs.

Product Features

High output & high quality – Premium Flat Yarn Making Machine

Quality tape, lower consumption, better economic effectiveness. Our flat yarn extruder machine delivers consistent tape production with superior tensile strength and dimensional stability. This pp flat yarn making machine ensures high output while maintaining exceptional tape quality, resulting in lower energy consumption and better economic effectiveness for manufacturers.

Intelligentized control system

The function of fault alarm can be controlled by PLC with simple operation. This plastic extrusion tape line features an advanced intelligent control system that enables real-time monitoring and precise parameter adjustment. Operators can easily manage production parameters, ensuring consistent tape quality in the flat yarn making machine production process.

Stretching& Fixing Device

The Tape gets high tenacity and stable shaping results. Our tape Extrusion line incorporates a sophisticated stretching and fixing device that ensures the tape achieves optimal tensile properties. This critical component in the pp flat yarn making machine process guarantees uniform tape thickness and excellent physical properties.

Inverter winder

By inverter controlled stable tension winding units, max. speed can be reached 450m/min. The flat yarn extruder machine is equipped with advanced inverter winding technology that maintains precise tension control throughout the winding process. This feature in our plastic extrusion tape line maximizes production efficiency while minimizing material waste.

Specifications/Parameters

Comprehensive Specifications for PP Flat Yarn Making Machine

Our high-performance Pp Flat Yarn Extrusion Machine is engineered with precision components to ensure reliable operation and superior tape quality. Below are the detailed technical specifications for our plastic extrusion tape line:

Model	YX-PLG1200
Screw barrel material	38CrMoALA, Nitriding treatment, multi-stage plasticizing screw; Zhejiang Jinxing (TOP 1 OF CHINA BRAND)
Screw L/D Ratio	31:1
T-Die	Jingcheng t-die (TOP 1 OF CHINA BRAND)
Main motor	Germany Siemens
Drive motor control	France Schneider or Japan YASKAWA
Metering pump	Switzerland Maag
Reducer	Germany Nord
Inverter Winder	Inovance or Anchi
Max Line Speed (m/min)	400

High Speed Plastic Extrusion Tape Line | PP Flat Yarn Making Machine

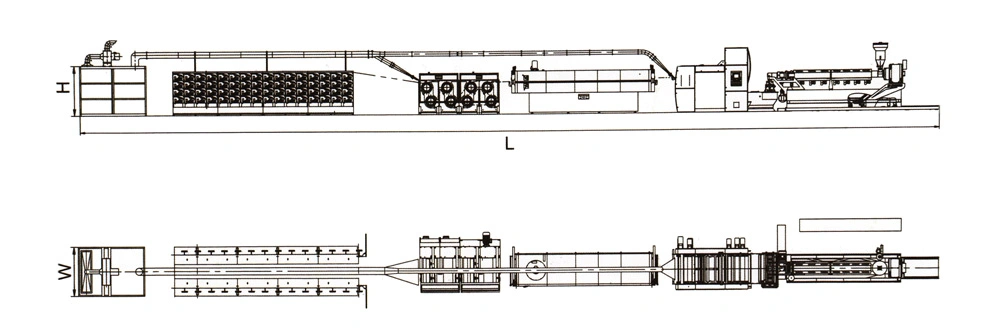

Composition of The Standard Loom

Standard items	Optional items
01) Granula automatic loader	01) Static mixer
02) Extruder	02) Multiple component dosing unit
03) Automatic screen changing filer	03) Direct drive motor for extruder
04) Melt pump system	04) Equipment for processing HDPE
05) Standard T-die	05) Second T-die
06) Water quenching tank	06) T-die for special tape
07) Film haul-off unit	07) Automatic adjust T-die
08) Water removal system	08) Film thickness detecting and control system
09) Tape slitting unit	09) Tape folding unit
10) Film holding unit	10) Tape fibrillator
11) Edge trim recycling system	11) Additional traction godets unit
12) Standard hot air oven (length 6m)	12) Extended hot air oven
13) Standard stretching section with 6 godets including heating unit	13) Electrostatic eliminator
14) Protective cover for stretching section	14) Additional stretching godets
15) Tape vacuunm extraction system including collection box	15) Additional oil heating annealing godets
16) Inverter winder	16) Annealing hot air oven
17) Electrical and control system	17) Additional chilling godets
	18) Winder monitoring system
	19) Water chiller
	20) Cooling water tower
	21) Air compressor station

Remark

* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.

** Specification and dimensions are subject to change without prior notice.

*** Special specification and versions on request.

Related Products

-- Complete Flat Yarn Making Machine Series

-- Other Plastic Extrusion Equipment

-- PP Flat Yarn Extrusion Machine Options

For customers looking for comprehensive woven bag production solutions, we also offer circular looms and lamination machines to complement our flat yarn making machine.

Application Scenarios

Our high speed plastic extrusion tape line and PP flat yarn making machine are widely used in various industries:

-- Woven bag manufacturing for packaging industry

-- Geotextile production for construction and landscaping

-- FIBC (Flexible Intermediate Bulk Container) production

-- Tarpaulin and cover material manufacturing

-- Agricultural packaging solutions

Technical Advantages

Compared to conventional flat yarn making machine, our plastic extrusion tape line offers:

Parameter	Conventional Machine	Yongxu PP Flat Yarn Making Machine
Production Speed	200-300 m/min	400-450 m/min
Energy Consumption	Higher	20-30% Reduced
Tape Quality	Standard	Premium with Uniform Thickness
Automation Level	Basic	Advanced PLC Control

FAQ about PP Flat Yarn Making Machine

Q: What materials can be processed in this plastic extrusion tape line?

A: Our flat yarn making machine is designed to process PP (polypropylene) and PE (polyethylene) granules for producing high-quality tapes for various applications.

Q: What is the maximum production speed of the tape Extrusion line?

A: Our high-speed plastic extrusion tape line can achieve maximum line speeds up to 450 m/min with the inverter winder, depending on the product specifications and material type.

Q: How does the flat yarn extruder machine ensure consistent tape quality?

A: The machine features precision screw design, multi-stage plasticizing technology, and advanced T-die from Jingcheng (top Chinese brand), ensuring uniform melt flow and consistent tape thickness throughout the production process.

Equipment details

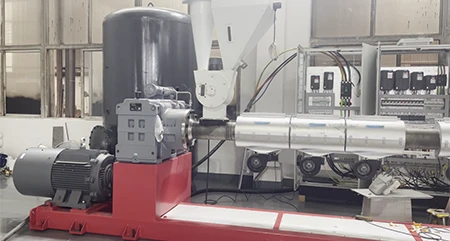

Extruder

Precision-engineered flat yarn making machine extruder featuring 31:1 L/D ratio screw with multi-stage plasticizing technology. This pp flat yarn making machine component utilizes 38CrMoALA nitrided screw barrel material for superior wear resistance and extended service life.

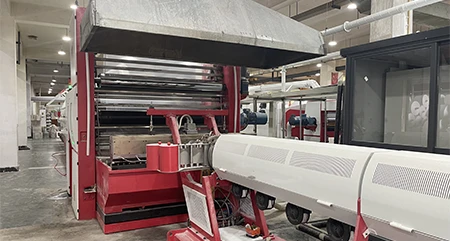

Traction Unit

Precision Traction Unit designed for stable tape transport in our tape Extrusion line. This critical component ensures accurate speed control and smooth tape movement throughout the flat yarn making machine process.

Stretching and Fixing Unit

High-efficiency Stretching and Fixing Unit that enables precise molecular orientation in the plastic extrusion tape line. This technology ensures the tape achieves optimal tensile strength and dimensional stability.

Extruder

High-performance flat yarn extruder machine with Switzerland Maag melt pump system for precise flow control and uniform melt distribution. The main drive system incorporates Germany Siemens motor for reliable operation in demanding plastic extrusion tape line applications.

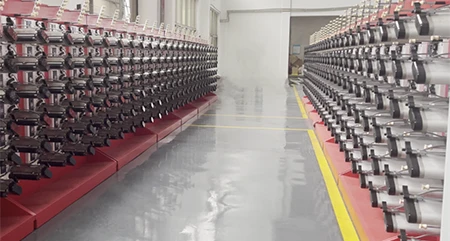

Winder

Inverter-controlled Winder with advanced tension management system for our flat yarn extruder machine. This unit achieves maximum winding speed of 450m/min while maintaining consistent roll quality and uniform tension.

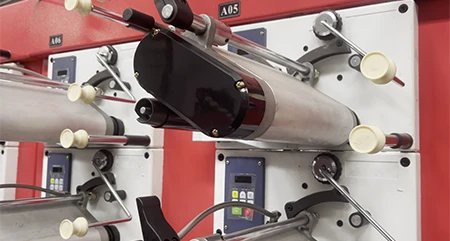

Inverter Winder

High-speed inverter winder incorporating Inovance or Anchi control systems for our pp flat yarn making machine. Features automatic diameter detection and tension compensation, ensuring uniform roll quality in the tape Extrusion line production process.
