YX-FYB850/6
Suspension Six Shuttle Circular Loom Machine
Watch The Video
| Shuttle | 6 Shuttles |
| Folded width | 300-850mm |
| Production speed | 3200-4000 meter/day, depend on the final width of yarn. |
| Cam tape | Flat cam |
Our high-performance circular weaving machine series is engineered with precision components to ensure reliable operation and superior weaving quality. Below are the detailed technical specifications for our PP woven bag circular loom, covering both YX-FYB850/6 and YX-FYB1200/6 models:
|
Model |
YX-FYB850/6 |
YX-FYB1200/6 |
|
Shuttle |
6 Shuttles |
6 Shuttles |
|
Folded width |
300-850mm |
600-1100mm |
|
Production speed |
3200-4000 meter/day, depend on the final width of yarn. |
2500 meter/day, depend on the final width of yarn. |
|
Prime motor rotational speed |
130-180 r/min |
80-140 r/min |
|
Cam tape |
Flat cam |
Small Flat cam |
|
Suitable material |
New PP & High grade recycled PP, PE tape. |
|
|
Warp yarn broken control |
Automatic stop for warp breaking |
|
|
Weft yarn broken control |
Automatic stop after weft breaking and weft completion |
|
This high speed circular loom series is designed to process both new PP and high-grade recycled PP, PE tape, providing flexible material options for different production needs. The automatic stopping systems for warp and weft break detection ensure optimal fabric quality and minimal material waste in our six shuttle circular loom production process.
|
Frame |
1 set |
|
Creel Stand |
2 unit |
|
Central drive system (small cam, A.C. motor) |
1 unit |
|
Positive warp infeed system with torque motor |
2 unit |
|
Warp break detecting system |
1 unit |
|
Weft break detecting system |
1 unit |
|
Weft pre exhaust detecting system |
1 unit |
|

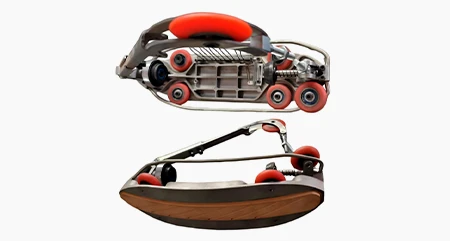

Shuttle assembly |
6 units |
|
Shuttle wheel |
5 pcs for each shuttle |
|
Shuttle motion guide |
1 unit |
|
Weaving size ring |
1 unit |
|
Bobbin storage above the intake |
2 units |
|
Manual operation control unit |
3 units |
|
Fabric haul-off system |
1 unit |
|
Electronic meter counter |
1 unit |
|
Standard width surface winder |
1 unit |
|
Loom control system |
1 unit |
Remark
*The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Our high speed circular loom and PP woven bag circular loom are widely used in various packaging applications:
-- Rice and Flour Bags: Standard food packaging with excellent printability and moisture resistance
-- Cement and Fertilizer Bags: Heavy-duty industrial packaging with superior strength and durability
-- Animal Feed Bags: Durable packaging for agricultural products with high tear resistance
-- Sugar and Grain Bags: Food-grade packaging with excellent moisture barrier properties
-- Chemical Packaging Bags: Chemical-resistant woven fabric for industrial applications
-- FIBC and Bulk Bags: Large-capacity packaging for industrial material handling
-- Tarpaulin and Covers: Heavy-duty woven fabric for protection and covering applications
Compared to conventional six shuttle circular loom, our high speed circular loom offers significant advantages:
| Parameter | Conventional Circular Loom | Yongxu Six Shuttle Circular Loom |
| Energy Consumption | 4.5-5.5KW/hour | 3.0KW/hour (Save 40%+) |
| Weaving Speed | 120-140 rev/min | 130-180 rev/min (YX-FYB850/6) |
| Fabric Quality | Standard | Premium with Minimal Defects |
| Automation Level | Basic Manual Control | Intelligent Touch Screen + Bluetooth |
| Fabric Defect Rate | 2-3% | < 0.5% |
| Minimum Folded Width | 400-500mm | 300mm |
| Daily Production | 2500-3000 meters | 3200-4000 meters |
The production speed of our high speed circular loom ranges from 2500-4000 meters per day, depending on the final width of yarn and the specific model (YX-FYB850/6 or YX-FYB1200/6). The PP woven bag circular loom is designed for optimal productivity with minimal energy consumption.
Our circular weaving machine is designed to process both new PP (polypropylene) and high-grade recycled PP, as well as PE (polyethylene) tape. The versatile material compatibility makes our six shuttle circular loom suitable for various woven bag production applications.
The intelligent lifting system in our high speed circular loom completely eliminates fabric dense and sparse phenomena during machine start-up and shutdown. This advanced PP woven bag circular loom feature ensures consistent weaving quality and significantly reduces material waste, providing superior fabric quality compared to conventional circular weaving loom machine.

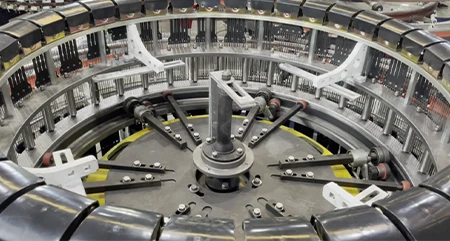

The precision-engineered plane cam mechanism in our six shuttle circular loom delivers high efficiency, energy saving, low consumption, and stable operation. This innovative circular weaving machine design provides exceptional control over shuttle movement, ensuring smooth weaving process and extended equipment lifespan with minimal maintenance requirements.

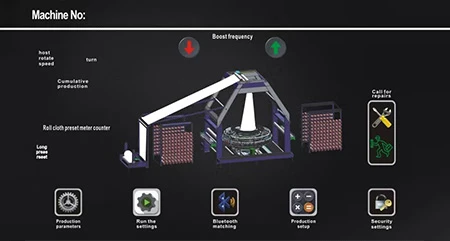

The intelligent touch screen control system in our high speed circular loom enables operators to easily monitor and adjust weaving parameters through a user-friendly interface. This six shuttle circular loom feature provides real-time production data, operational status monitoring, and convenient parameter adjustments, making operation simple, efficient, and reducing operator training time.
Our six shuttle circular loom is ideal for producing food-grade woven bags for rice, flour, sugar, and grain packaging. The high speed circular loom ensures consistent fabric quality with excellent printability, meeting stringent food safety requirements for PP woven bag circular loom applications.
The PP woven bag circular loom produces heavy-duty woven fabric for cement, fertilizer, and chemical packaging. Our circular weaving machine delivers superior strength and durability, withstanding demanding industrial applications with excellent chemical resistance and load-bearing capacity.
Our circular weaving loom machine efficiently produces woven bags for animal feed, seeds, and agricultural products. The weaving circular loom provides excellent moisture resistance and durability for agricultural packaging applications, protecting contents from environmental factors.
