Shuttle |
4 shuttles |
|
Folded width |
300-750mm |
|
Production speed |
About 3000 meter/day (Depend on the final width of yarn) |
|
Cam tape |
Small flat cam |
|
Model |
YX-WYZJ-750/4 |
|
Shuttle |
4 shuttles |
|
Folded width |
300-750mm |
|
Production speed |
About 3000 meter/day (Depend on the final width of yarn) |
|
Cam tape |
Small flat cam |
|
Suitable material |
PP tape |
|
Warp yarn broken control |
Automatic stop for warp breaking |
|
Weft yarn broken control |
Automatic stop after weft breaking and weft completion |
|
Frame |
1 set |
|

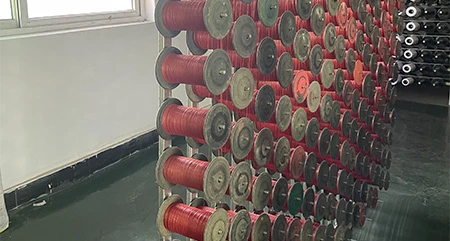

Creel Stand |
2 unit |
|
Central drive system (small cam, A.C. motor) |
1 unit |
|
Positive warp infeed system with torque motor |
2 unit |
|
Warp break detecting system |
1 unit |
|
Weft break detecting system |
1 unit |
|
Weft pre exhaust detecting system |
1 unit |
|
Shuttle assembly |
4 units |
|
Shuttle wheel |
with |
|
Shuttle motion guide |
1 unit |
|
Weaving size ring |
1 unit |
|
Bobbin storage above the intake |
2 units |
|
Manual operation control unit |
3 units |
|
Fabric haul-off system |
1 unit |
|
Electronical meter counter |
1 unit |
|

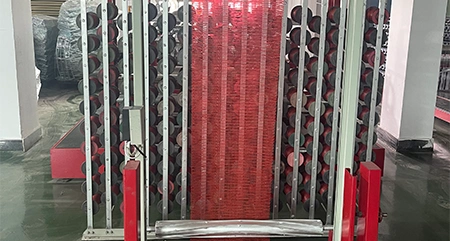

Standard width surface winder |
1 unit |
|
Loom control system |
1 unit |
Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request
