| Shuttle | 4 Shuttles |
| Folded width | 300-750mm |
| Production speed | 2200 meter/day, depend on the final width of yarn. |
| Cam tape | Small cam |
YX-FYB750/4
Four Shuttle Circular Loom
Watch The Video
| Shuttle | 4 Shuttles |
| Folded width | 300-750mm |
| Production speed | 2200 meter/day, depend on the final width of yarn. |
| Cam tape | Small cam |
|
Model |
YX-FYB500/4 |
YX-FYB750/4 |
YX-FYB1200/4 |
YX-FYB1500/4 |
|
Shuttle |
4 Shuttles |
4 Shuttles |
4 Shuttles |
4 Shuttles |
|
Folded width |
120-500mm |
300-750mm |
600-1100mm |
950-1300mm |
|
Production speed |
2200 meter/day, depend on the final width of yarn. |
2200 meter/day, depend on the final width of yarn. |
2000 meter/day, depend on the final width of yarn. |
2000 meter/day, depend on the final width of yarn. |
|
Prime motor rotational speed |
160-200 r/min |
160-200 r/min |
150-190 r/min |
120-160 r/min |
|
Suitable material |
100% virgin pp, or the recycled pp + virgin pp, or 100% recycled pp. |
|||
|
Cam tape |
Small Flat cam |
|||
|
Warp yarn broken control |
Automatic stop for warp breaking |
|||
|
Weft yarn broken control |
Automatic stop after weft breaking and weft completion |
|||

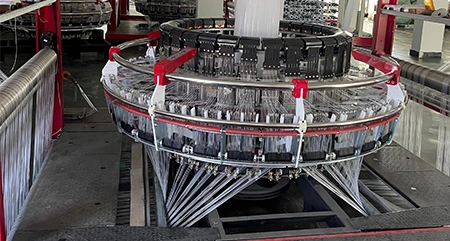

| Frame | 1 set |

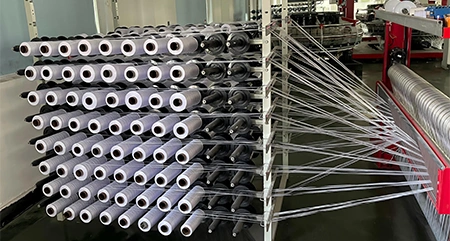

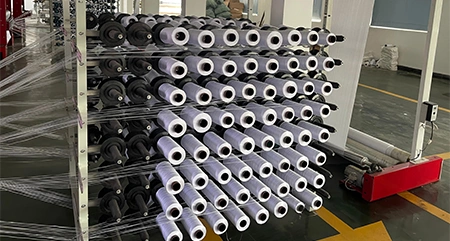

| Creel Stand | 2 unit |

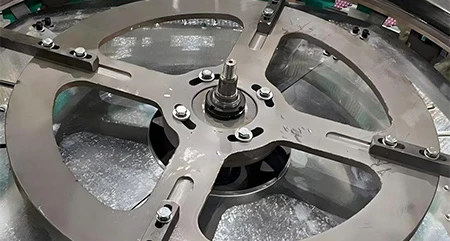

| Central drive system (small cam, A.C. motor) | 1 unit |
| Positive warp infeed system with torque motor | 2 unit |
| Warp break detecting system | 1 unit |
| Weft break detecting system | 1 unit |
| Weft pre exhaust detecting system | 1 unit |
| Shuttle assembly | 4 units |
| Shuttle wheel | with |
| Shuttle motion guide | 1 unit |
| Weaving size ring | 1 unit |
| Bobbin storage above the intake | 2 units |
| Manual operation control unit | 3 units |
| Fabric haul-off system | 1 unit |
| Electronic meter counter | 1 unit |
| Standard width surface winder | 1 unit |
| Loom control system | 1 unit |
Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
