YX-FYB1850/8

Eight Shuttle Circular Loom

Shuttle	8 Shuttles
Folded width	1450-1850mm
Production speed	60-120 meter/hour, depend on the final width of yarn.
Cam tape	Flat cam

Watch The Video

Bag size:

Width

Length

Printing

Yes

One side

color

Both sides

color

Capacity Requirement:

kg/hr

Primary Materials:

Submit Contact Us

Product Introduction

This circular loom of the flat cam structure, without oil lubrication, smooth operation, high efficiency, low consumption, greatly reduce production costs. Applicable to a variety of other types of woven bags, bulk bags, tarpaulins, geotextiles and other production and processing.

Product Features

Intelligent Touch Screen Control

Intelligent, easy operation and efficient.

Warp Feeding System

Can minimize the changes of weaving width.

Weft breakage & weft finished detecting system

Once the weft tape is broken or nearly exhausted, the loom is stopped automatically.

Brown belt & wire heald

Brown belt is made of the material with high strength, and high tenacity combined with wire heald, stable running and low noise.

Specifications/Parameters

Model	YX-FYB1850/8	YX-FYB2100/8	YX-FYB2300/8
Shuttle	8 Shuttles	8 Shuttles	8 Shuttles
Folded width	1450-1850mm	1700-2100mm	1800-2200mm
Production speed	60-120 meter/hour, depend on the final width of yarn.	60-120 meter/hour, depend on the final width of yarn.	55-110 meter/hour, depend on the final width of yarn.
Prime motor rotational speed（r/min）	20-85	20-85	20-60
Suitable material	100% virgin pp, or the recycled pp + virgin pp, or 100% recycled pp.
Warp yarn broken control	Automatic stop for warp breaking
Weft yarn broken control	Automatic stop after weft breaking and weft completion

Remark

* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.

** Specification and dimensions are subject to change without prior notice.

*** Special specification and versions on request.

Equipment details

Intelligent Touch Screen Control

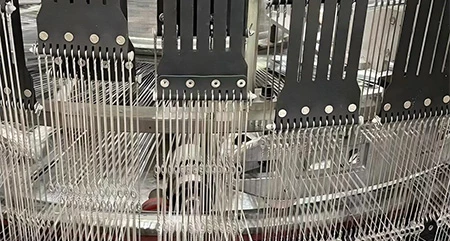

Brown belt & Palm

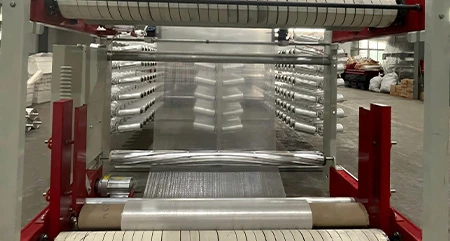

Double winder

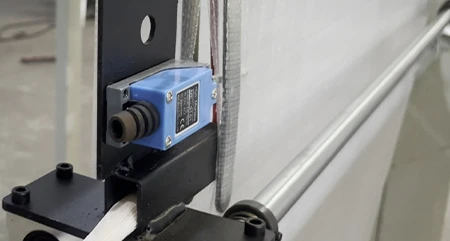

Splitting knife device

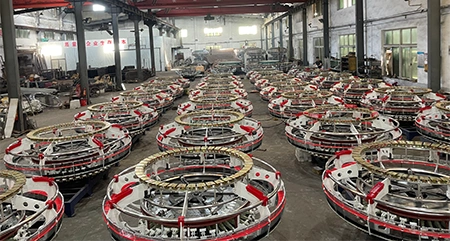

Production

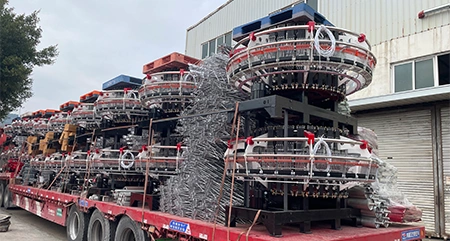

Shipment
